Light Fixtures & Light Poles powder coating powdeTexture:hammer/wrinkle/crocodile/sand/ect.Type:thermosettingGloss:high/low/matt
Our coatings provide durability, scratch resistance, weather resistance. We have a wide range of colors, glosses, finishes and textures. Whether you are dealing in steel, aluminum, or galvanized steel, our ability to abrasive blast and our six-stage pretreatment process will give you the long lasting, quality you are looking for.
1. professional manufacturer of polyester powder coating paint
2.Outstanding weather resistance polyester powder coating paint
3.Excellent outdoor durability
4.Good UV resistance
5.Gloss retention over long periods
Features:
1.Good leveling
2.Excellent physical and mechanical property(impact resistance, hardness, flexibility, adhension etc.)
3.Excellent corrosion resistance
4.Much better resistance of heat and light stability
5. good heat resistance and light resistance
6..Non-polluted, environment friendly, high efficiency
7. Good physical mechanical properties
Test References:
Test Item | Test standard and Method | Test index | |
Impact resistance | GB/T 1732 -1993 | ISO6272 | 50kg·cm |
Adhension(cross-cut) | GB/T 9286 - 1998 | ISO2409 | Class 0 |
Flexibility | GB/T 6742-1986 | ISO1519 | 2mm |
Pencil hardness | GB/T 6739-1996 | ISO2815 | 1H-2H |
Cupping test | GB/T 9753-1988 | ISO1520 | 6mm |
Salt spray resistance | GB/T 1771-1991 | ISO7253 | >400 Hrs |
Heat & humidity resistance | GB/T 1740-1979 | ISO6270 | >500 Hrs,film gloss slightly lose |
Note: 1. Above test are using 0.30mm thickness degreased, rust removed cold rolling steel plate, film thickness is 60-80um. 2. Film performance may slightly decrease with gloss decrease. |
accept customized.
Variety gloss and color:
high gloss (Above 85º)
semi gloss (10~85º)
no gloss (below 10º)
(gloss and color of product is made according to clients requirement)
Applications:
Residential – Commercial – Industrial – Architectural – Marine
Automotive – Motor Cycle Frames – Wheels & Parts
Bicycles Frames & Parts – ATV’s – Airboats
Aluminum Extrusions – Decorative Metal – Trade Show Exhibits
Retail Displays – Fixtures – Sand Blasting
Other type of powder coating we can supply as follows:
Lamps and lantern Powder Coatings
This product is synthesized by epoxy and polyester resin, with special properties of the two materials, with advantages of excellent decorative effect, mechanical properties and high corrosion resistance. It is widely used in metal lanterns decoration as following:

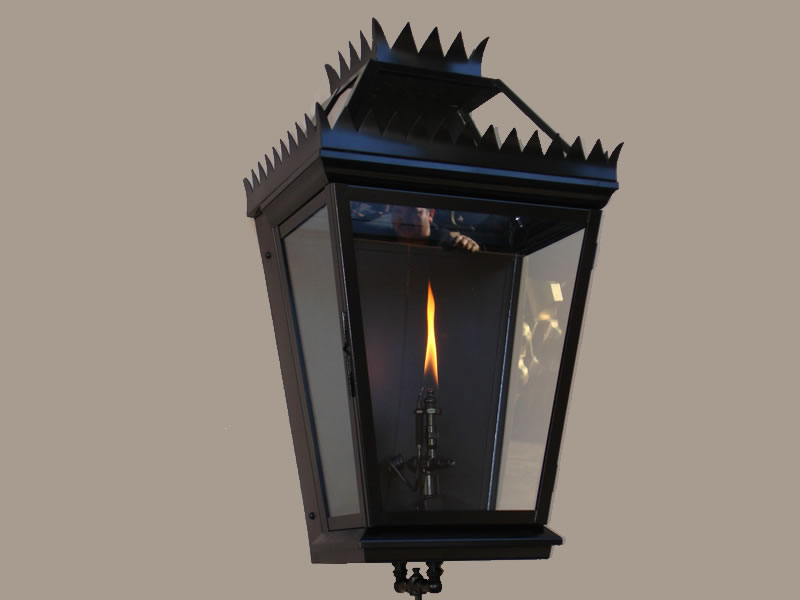

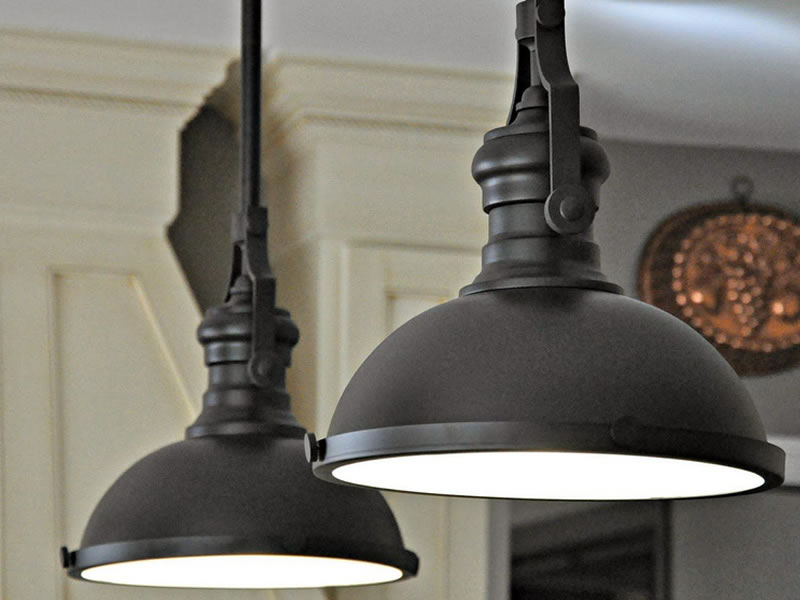

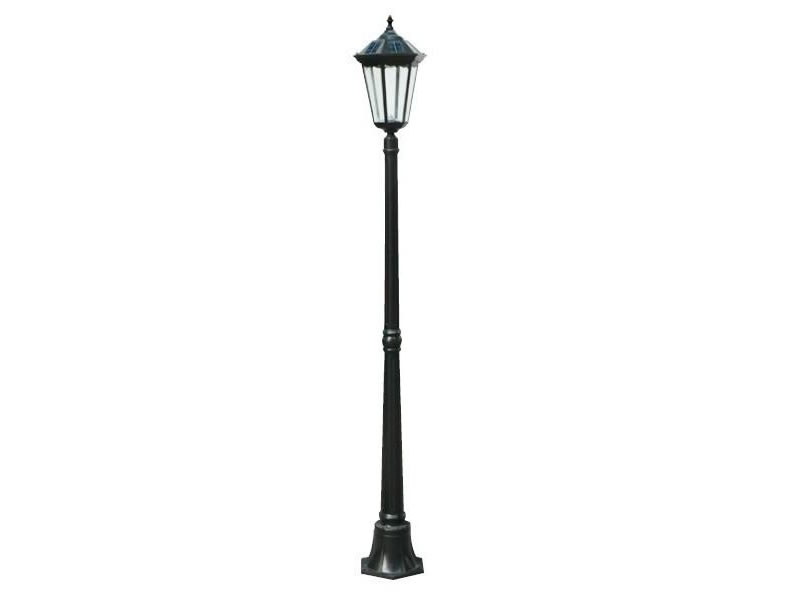

•lantern decoration: ceiling lamp, table lamp, fluorescent light, energy-saving lamp, flood light, explosion proof light, signal lamp, indoor light, outdoor light, wall light, ground light, pendant light, down light, spot light, yard lamp, road light;
•we offer powder coatings with different colors, gloss and textures.
Lamp and lantern powder coatings
Physical properties
Gravity
1.4-1.7,up to color and gloss
Grit size
100% smaller than 100μm, special requirement should be informed
Mobility
120-140
Properties of
Coating layer
Item
criteria
result
Gloss 60°
GB/T9754-88
1° to 95°+
Impact test
ISO6272
GB/T1723-1993
50cm/kg
Cupping test
ISO1520
GB/T9753-1988
8mm
Adhesion
ISO2409
GB/T 9286-1998
Grade 0
Bending test
ISO1519
GB/T 6742-1986
2mm
Pencil hardness
ASTMD3363
GB/T 6739-1996
1H-2H
Salt-fog test
ISO7253
GB/T 1771-1991
>500h
Anti-humidity
ISO6270
GB/T 1740-1979
>1000h
Heat resistance
110℃/24h(white)
Excellent gloss retention, △E≤0.3-0.5
Attention:1. Above parameters are gained from oil-free, rust removal cold rolling steel board of
thickness of 0.8mm, under experimental circumstances, with coating layer thickness of 70μm;
2. The property data may drop down a little upon gloss reduction.
Application conditions:
Consolidation conditions
Standard
180℃(work piece temperature) 15-20min
Pre-treating
Low temperature 160℃(work piece temperature) 15min
Fast 200℃(work piece temperature) 8min
Pre-treating methods differs from different substrates( phosphating process,
sand blasting, shot treatment)
Spraying
Corona electrostatic spraying ; frictional electrostatic spraying ; for other special spraying method (user must propose requirement ahead)
Theoretical
coverage
8-10m2/kg, coating layer thickness 60um, up to types and colors
Application confine
Indoor and outdoor
other
Packaging and
transportation
20Kg/Carton, with polyethylene bag, Non-dangerous articles, transportation
friendly. Avoiding straight sunlight, humidity, heat, and contact with chemical substances;
Storing
Stored indoors at 40℃, ventilated, dry, clean warehouse, avoiding fire source,
heat radiators, straight sunlight, opening to the air. Warranty period: 6 months.
To be used after checking if expired. Unfinished bags should be sealed after
opening.
Hygiene and
security
Bags should be sealed after working. Keep away from fire source. Avoiding intake of powder. Catering and smoking are forbidden in relevant
warehouse. Labor should wear anti-static shoes, keep grounding.
Attentions: We do not recommend use of bright color series such as yellow, orange, red, or metallic color series. For details
